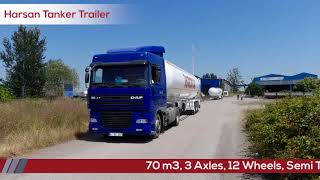

Nova Harsan 2025 Model 70 m3 (33 Tons) Capacity Semi Trailer LPG Transport T poluprikolica cisterna za plin

1) TECHNICAL SPECS OF SEMI-TRAILER

CHASSIS Will be made of material with “I” type cross-section.
Cross traverses will be in the shape of “I”.
All sections will be welded with gas arc welding.
AXLE MPD brand, 3 x 12 ton loading capacity, domestic brand axles.
SUSPENSION SYSTEM Z scissors air bellow system. Height adjustable.
Limiter system against exceeding axle movements.
BRAKE SYSTEM ABS type with drum system.
SUPPORT/LIFT LEGS Each one has 24ton bearing capacity.
WHEELS + RIMS 1200 R22.5, Petlas brand, 12 pieces + Rims. (Spare is optional)
FENDERS Made of plastic, 6 pcs.
KING PIN 2” flanged type. Resistant against stress and rupture.
Made of forged steel. Bolted system and easily detachable.
ELECTRICAL SYSTEM 24V system with standard 7 pole plug conforming to European norms. Signature plate lighting lamps. Signal lamps. Parking, braking and reversing lamps. Side lamps.
There will be some warning stickers on the tank and trailer.
ACCESSORIES 1 pc Cabinet for loading-unloading system.
1 pc Cabinet for Fire Extinguisher
1 pc Bumper
1 pc Water Tank
1 pc Spare Tire Bearer Basket
1 pc Plastic Chock and its port
Warranty Mechanical parts will be under warranty during 1 year against production defects.
NOTE :

• King-pin height from the ground : 1250 mm
• The distance between axles : 1310 mm

2) TECHNICAL SPECS OF LPG TANKER TRAILER

Brand and Condition Brand: HARSAN Condition: Brand New
Volume 70 m³
Tare Weight (Approx.) 15500 kg
Max. Payload Volume 33200 kg (regarding 85% filling rate)
Diameter 2550 mm
Length 14341 mm
Height 4000 mm
Shell Plate Thickness 10 mm
Dished End Plate Thickness 12 mm
Manhole 16’’
Warranty Mechanical parts will be under warranty during 1 year against production defects.

3) DESIGN DATA OF TANK

Tank Type Tank Body Type: Horizontal and Cylindrical
Design Temperature -20°C / +50°C
Design Pressure 17,5 bar
Material Material Confirm to AD2000
Welding EN 9606-1 and ISO14732 Certified welder and welding operators according to their standards Welding materials conforming to EN ISO 14171 and 14341.
Shell and Caps Welding: SAW or SMAW + SAW
Nozzle Welding’ : GTAW or SMAW
Heat Treatment Will be applied to only dished ends.
Painting System Sand blasting according to SIS 05 5900 in SA 2.5 degree.
One layer shop primer anti-corrosion.
One layer epoxy primer. One layer final acrylic paint.

4) INSPECTION

Certificate of Conformity to Resource Quality Requirements Welding Radiographic or ultrasonic examination.
Hydrostatic Test A third party authorized by hydrostatic testing at 26.5 bar.
Leakprofness Test Tested by HARSAN.

5) ACCESSORIES

1 Pc Hydraulic Operator
1 Pc Hydraulic Valve DN80
2 Pc Hydraulic Valve DN50
2 Pc Monoblock Globe Valve DN50 PN40
1 Pc Monoblock Globe Valve DN40 PN40
2 Pc 3 ¼’’Acme Adapter and Cover
1 Pc 2 ¼’’Acme Adapter and Cover
2 Pc Safety Relief Valve 3’’ NPT
1 Pc Rotogauge 1’’NPT
1 Pc Manometer Ø63 ( 0-40 bar )
1 Pc Thermometer Ø63 ( -30 + 60 °C )
1 set LPG Pump + By Pass + Hydro Motor+ Hydraulic Line to the front of the tank for hydro motor.
1 set LPG Meter / Counter Mechanic.
1 set 1 ¼’’ 20 meter Hose + 1 ¾’’Filling Gun + Pneumatic Hose Drum.
1 set Fitting Material for system.

6) Certificate

ISO 9001-2015 * HARSAN Certificate of Quality Management System
ISO 3834-2* HARSAN Certificate of Conformity to Resource Quality Requirements
EN 10204 / 3.1 *Certificate of Pressure Vessel Material
Certificate of Ultrasonic and Radiographic İnspection.
Certificate of Hydrostatic Test.
EN 9606-1 * Certificate of Welding
ISO14732 * Certificate of Welding Operator
Certificate of Accessories
