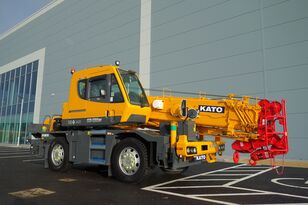

Nova KATO NEW CR-250Rv - 25 Ton City Crane autodizalica

PDF
Cijena:
na upit
Kontaktirajte prodavatelja
Marka KATO
Tip autodizalica
Godina proizvodnje 2020
Kapacitet podizanja 25000 kg
Neto težina 23795 kg
Visina podizanja 38.4 m
Lokacija Irska Co. Cork
Datum objavljivanja 29 svi 2020
Autoline ID NZ21919
PDF
Opis
Ukupne dimenzije 9.1 m × 2.3 m × 3.4 m
Karoserija
Kutija za alate
Motor
Marka Cummins B6.7 - STAGE V
Gorivo dizel
Euro Euro 5
Kočnica
ABS
Kabina
Hidraulički servo upravlljač
Klima uređaj
Kontrola klime
Grijač zrcala
Električni podizači stakala
Elektronsko podešavanje ogledala
Pomoćni farovi
Svjetla za maglu
Stanje
Stanje novi
Orginalna farba
Dodatne informacije: Engleski
NEW KATO CR-250Rv - 25 Ton City Crane

Designed & Manufactured for the European Market, the NEW KATO CR-250Rv combines over 100 years of Japanese Engineering to bring you the very best in Reliability, Versatility and Quality.

With a Longer Boom, Higher Road Speed, Increased Lifting Capacity and the Highest Specification, the New Standard in City Cranes in Europe has been set by KATO once again.

NEW LONGER & STRONGER BOOM
A Fully Powered 29 Meter Main Boom
Up to 25% Stronger Lifting Capacities on Duties up to 10 Metres radius over the previous model CR250
Up to 78% stronger than the CR-200Rf under the same condition
Up to 12% Stronger Lifting Capacities on Duties from 10 Metres radius over the previous model CR250.
Up to 62% stronger than the CR-200Rf under the same condition )
(based on Boom Fully extended)

NEW STRONGER SEARCHER HOOK
A New 7.5 Ton Searcher Hook as Standard ( 50% Stronger than Searcher Hook on CR-200Rf)

NEW FULLY HYDRAULIC FLY JIB
The KATO Super Luffing Fly Jib, while previously only available on the 35 Ton City Crane the Hydraulically Telescopable and Hydraulically Luffing Fly Jib is now fitted as standard on the CR-250Rv bringing the Maximum Rated Lifting Height (Boom + Jib) of 38.1 meters
Hydraulically Telescoping from 5.3 Metres to 8.2 Metres which can be mounted within a 5.7 Meter area from the slew centre.
Fully Powered and can telescope and offset under 100% load.

OTHER NEW FEATURES

New Cummins QSB6.7 European Compliant Stage V Engine with 209Kw output ( 33% increase over previous CR250 ).
Maximum Travelling Road Speed of 62km p/h.
2 – Winches, Main plus Auxiliary ( Auxiliary Winch Capacity 4t).
ABS Braking system as Standard.
Newly adopted Hydraulic Pneumatic Suspension for a smoother ride and greater Operator comfort.
Axle weights of under 12,000Kgs.
Compact Overall Dimensions / same physical size as the previous model CR250 which was sold in the UK.

Please contact us for further information or a detailed quotation.
